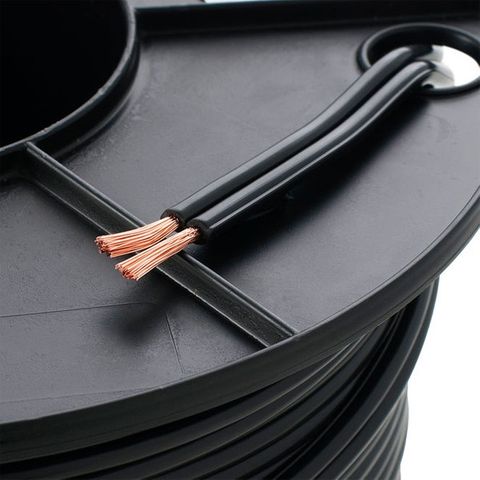

1.0MM 2Core GARDEN CABLE 100M/ROLL
Stock Code:
LFD23202
Description
A twin, Stranded Cu conductors with Black PVC insulation (parallel web), suitable for AC and DC applications and can be buried and Water resistant. Ideal for garden lighting.
2 Core Parallel Webbed (Figure 8) 32/.2 (1.0 mm sq). P.A.C.W.
U.V resistant V90HT P.V.C insulated.
Extra Low Voltage Garden Light cable. Not for mains connection.
Oxygen Free copper. RoHS compliant PVC.
V90HT PVC Insulated 0.6/1KV
Conductor: 32 strands of 0.2mm Plain Annealed Copper to AS/NZS 1125 Class 5 drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 26.7 ohms / km.
Insulation: Coloured U.V Resistant V90HT P.V.C.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 2.6 x 5.7 mm.
Nominal Wall Thickness: 0.6 mm.
U.V resistant V90HT P.V.C insulated.
Extra Low Voltage Garden Light cable. Not for mains connection.
Oxygen Free copper. RoHS compliant PVC.
V90HT PVC Insulated 0.6/1KV
Conductor: 32 strands of 0.2mm Plain Annealed Copper to AS/NZS 1125 Class 5 drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 26.7 ohms / km.
Insulation: Coloured U.V Resistant V90HT P.V.C.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 2.6 x 5.7 mm.
Nominal Wall Thickness: 0.6 mm.
