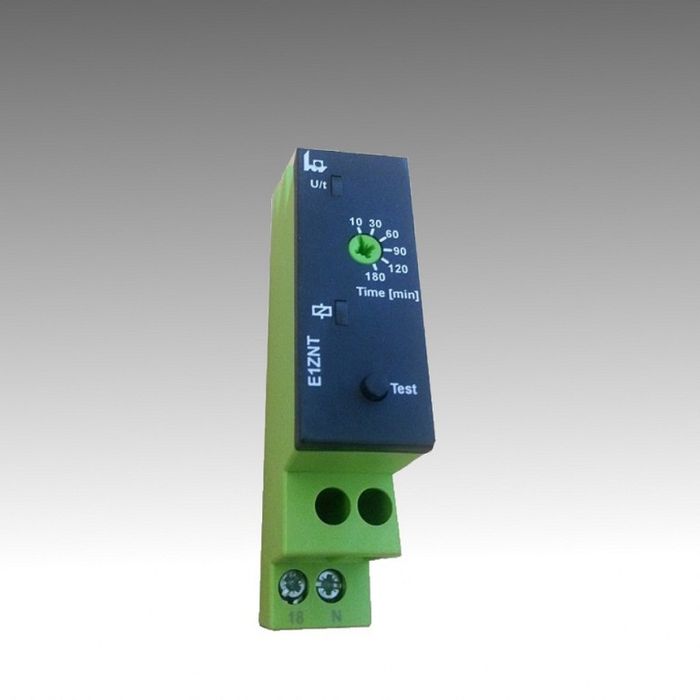

EMERGENCY LIGHTING CONTROLLER 230V
Stock Code:
E1ZNT230VAC
Description
ENYA series
Timer for automatic test of emergency lights
Integrated test key
1 change over contact
Width 17.5mm
Installation design
Technical data
Ws Single shot leading edge with control contact
Time ranges
Time range reversible between
10min, 30min, 60min, 90min, 2h and 3h
IP rating IP20
Tightening torque: max. 1Nm
Terminal capacity:
1 x 0.5 to 2.5mm² with/without multicore cable end
1 x 4mm² without multicore cable end
2 x 0.5 to 1.5mm² with/without multicore cable end
2 x 2.5mm² flexible without multicore cable end
5. Input circuit
Supply voltage: 230V AC
Terminals: L-N
Tolerance: -15% to +10%
Rated frequency: 48 to 63Hz
Rated consumption: 2VA (1.0W)
Duty cycle: 100%
Reset time: 500ms
Ripple and noise at DC: -
Drop out voltage: >30% of supply voltage
Overvoltage category: III (in accordance with IEC 60664-1)
Rated surge voltage: 4kV
