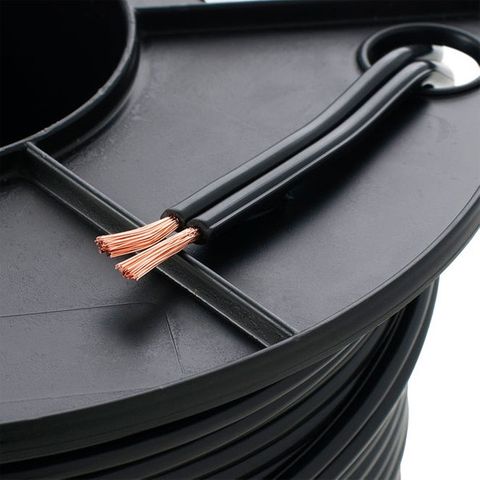

1.5MM 2Core GARDEN CABLE 100M/ROLL
Stock Code:
LFD230025-BK-100
2 Core Parallel Webbed (Figure 8) 30/.25 (1.5 mm sq). P.A.C.W.
Flexible U.V resistant V90HT P.V.C insulated.
Extra Low Voltage Garden Light cable. Not for mains connection.
Oxygen-Free copper. RoHS compliant PVC.
Conductor: 30 strands of 0.25mm Plain Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 13.7 ohms / km.
Insulation: Coloured U.V Resistant V90HT P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 4.0 x 8.3 mm.
Nominal Wall Thickness: 1.1 mm.
Flexible U.V resistant V90HT P.V.C insulated.
Extra Low Voltage Garden Light cable. Not for mains connection.
Oxygen-Free copper. RoHS compliant PVC.
Conductor: 30 strands of 0.25mm Plain Annealed Copper to AS/NZS 1125 drawn from Class 102 copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 13.7 ohms / km.
Insulation: Coloured U.V Resistant V90HT P.V.C. to AS/NZS 3808.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 4.0 x 8.3 mm.
Nominal Wall Thickness: 1.1 mm.
