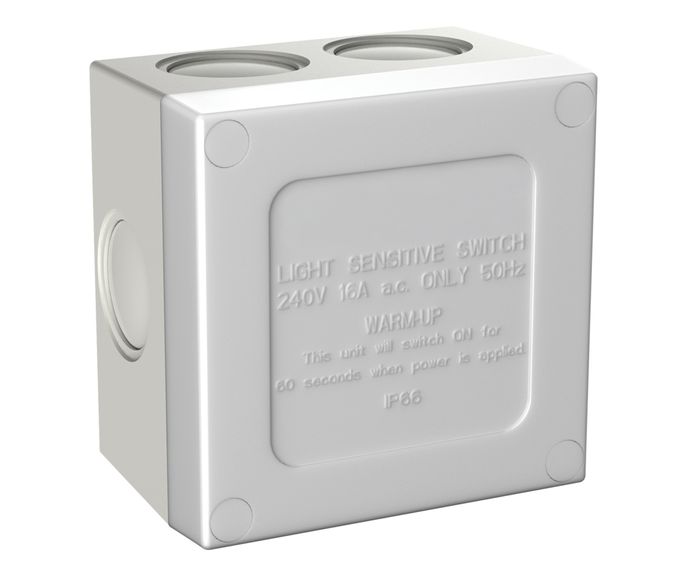

WATERPROOF 16A PHOTOELECTRIC SUNSET SWIITCH IP66
Stock Code:
HSC110SS
Description
The Photoelectric Sunset Switch is used to switch outdoors lights (or indoors light when
applicable) off when they are not required in daylight.
In its most basic form, the unit senses outdoors light level and switches a relay
on and off, thus turning the lights wired to it on or off. Traditionally the lights
would turn on during sunset, therefore it is commonly known as a Sunset Switch.
Features and Benefits:
• 4 in 1 patented design
• Easy mode and timer programming using internal DIP switches
• Can be programmed to turn off at a fixed time every day - Real Time mode
• Industry compatible form factor suitable for retrofitting to HPM base
• IP rated product for worry free outdoor installations
• Heavy-duty brass terminals
• Max rated load 3840W (incandescent and PCB)
• 15 minute step timer range, up to 15.75 hours (or day break)
• All required parts are supplied including glands and DIP switch tool
• Quick installation with a short warm up time
• Higher power relay - fewer units are needed to control more lights
• Descriptive internal label for easy installation and set-up
• Turn ON/OFF delay stops inadvertent switches
Operating Voltage: 220 – 240V a.c. 50Hz
• Operating Temperature: 0 to +50 °C
• Certified Standard: CISPR15, AS/NZS 61347.2.11
• Ingress Protection: IP66 (When all used and unused entries are sealed)
• Maximum Load: 3840W Incandescent and Halogen, 3840VA fluorescent
• Minimum Load: 0W
• Maximum Current capacity: 16A
• Light Levels: ON - 25lux, OFF - 50lux
• Turn ON/OFF Delay: 1 minute
• Timer Steps: 30 minutes
• Delay Timer Range: 30 minutes - 15.5 hours
Note: Not suitable to be driven by DC-AC inverter.
