HEAVY WALL 16/4 HEATSHRINK 1.2METERFOR INSULATING / SEALING POWER CABLES
Stock Code:
WCSM-16/4-1200/S
Description

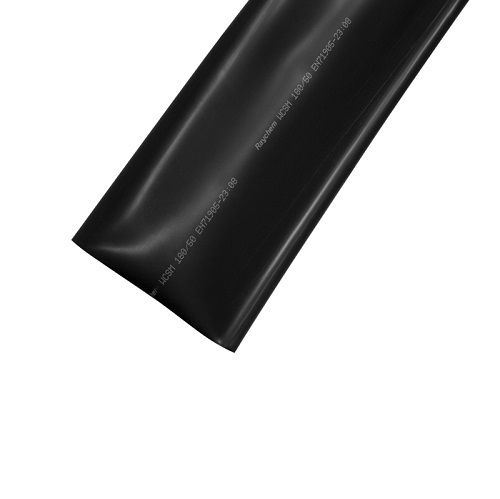

WCSM is a heatshrinkable heavy-wall tubing for insulating and sealing power cables and accessories. WCSM material is halogen free and UV resistant. WCSM tubing¡¯s mechanical strength enables immediate back-filling of cable trenches after jointing. It is widely used to insulate, protect and seal power cable joints, accessories and electrical connections.
APPLICATIONS
Fast cost effective way to waterproof joints
Low voltage underground jointing and terminations
Sealing of lugs and glands
Resistant to chemicals, corrosion and decay
TECHNICAL DATA
Operating Temperature range -40°C to 120°C
Shrink ratio 3:1
Adhesive wall
Voltage class 1kV
Black Colour
Other lengths available on request.
All lengths subject to standard cutting tolerances
Sealant lined
Halogen free
Fast cost effective way to waterproof joints
Low voltage underground jointing and terminations
Sealing of lugs and glands
Resistant to chemicals, corrosion and decay
TECHNICAL DATA
Operating Temperature range -40°C to 120°C
Shrink ratio 3:1
Adhesive wall
Voltage class 1kV
Black Colour
Other lengths available on request.
All lengths subject to standard cutting tolerances
Sealant lined
Halogen free
