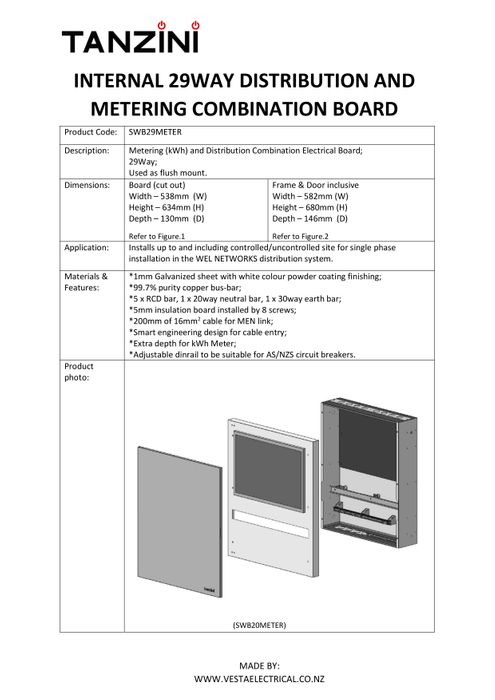

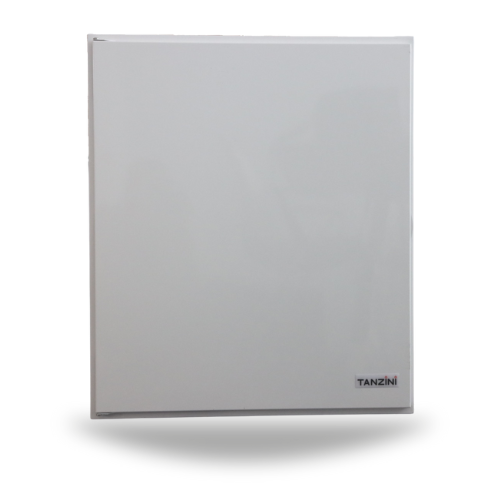

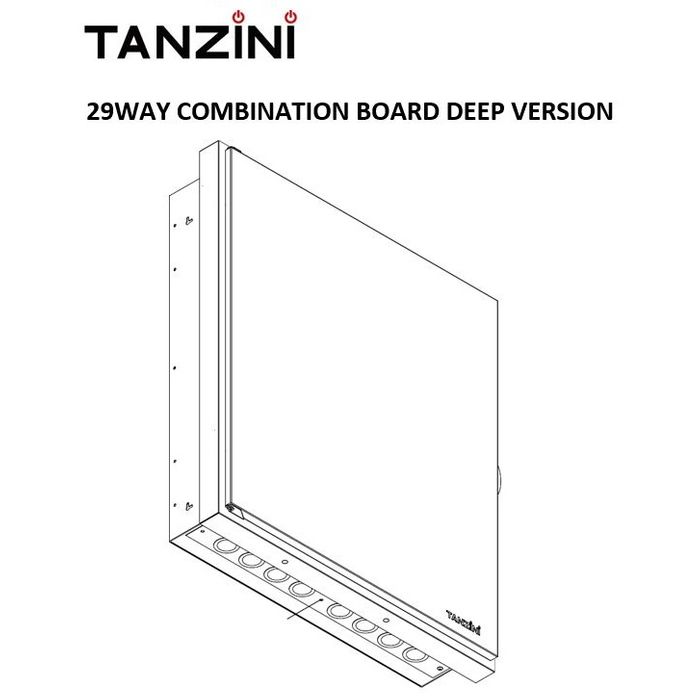

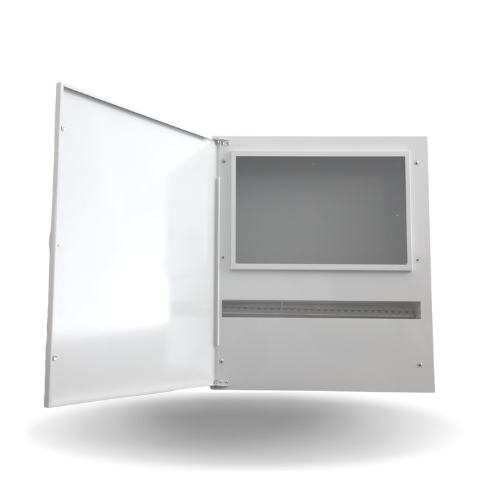

TANZINI COMBINATION METAL BOARD 29WAYDEEP
Stock Code:
SWB29METER

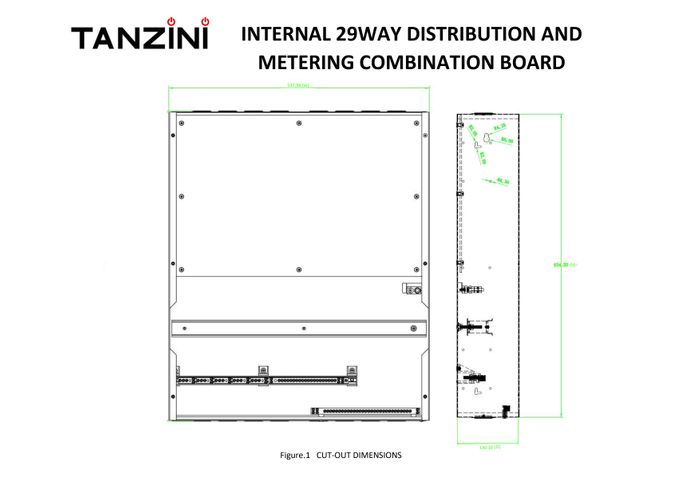

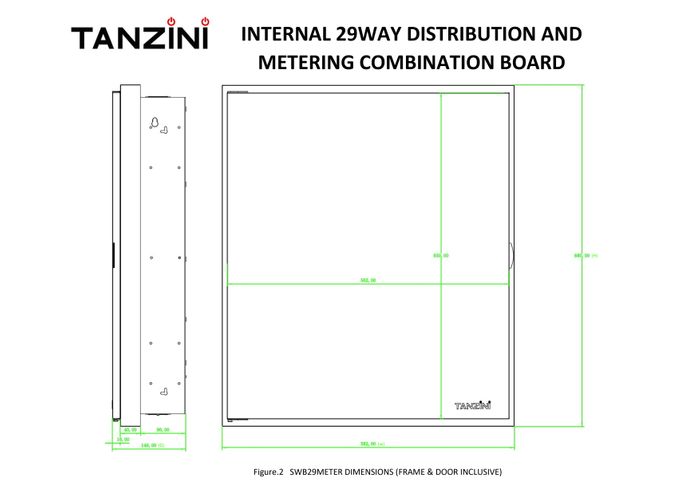

CUT OUT: 538W x 634H x 130D (mm)
*1mm Galvanized sheet with white colour powder coating finishing;
*99.7% purity copper bus-bar;
*5 x RCD bar, 1 x 20way neutral bar, 1 x 30way earth bar;
*5mm insulation board installed by 8 screws;
*200mm of 16mm2 cable for MEN link;
*Smart engineering design for cable entry;
*Extra depth for kWh Meter;
*Adjustable dinrail to be suitable for AS/NZS circuit breakers.

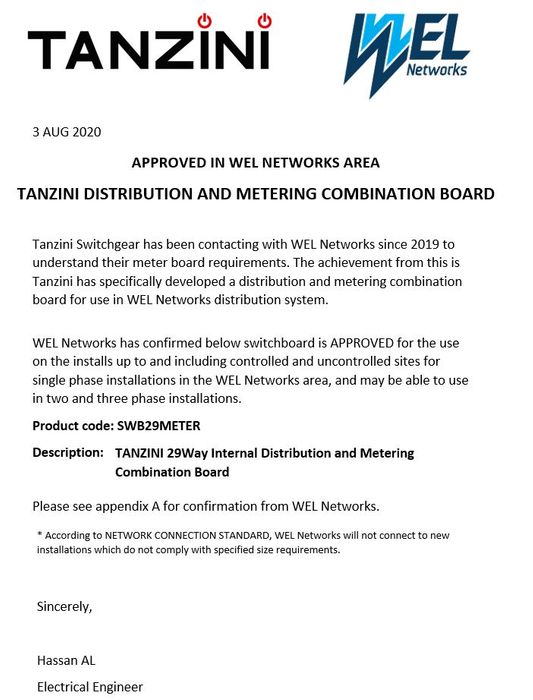

Tanzini Switchgear has been contacting with WEL Networks since 2019 to understand their meter board requirements. The achievement from this is Tanzini has specifically developed a distribution and metering combination board for use in WEL Networks distribution system.

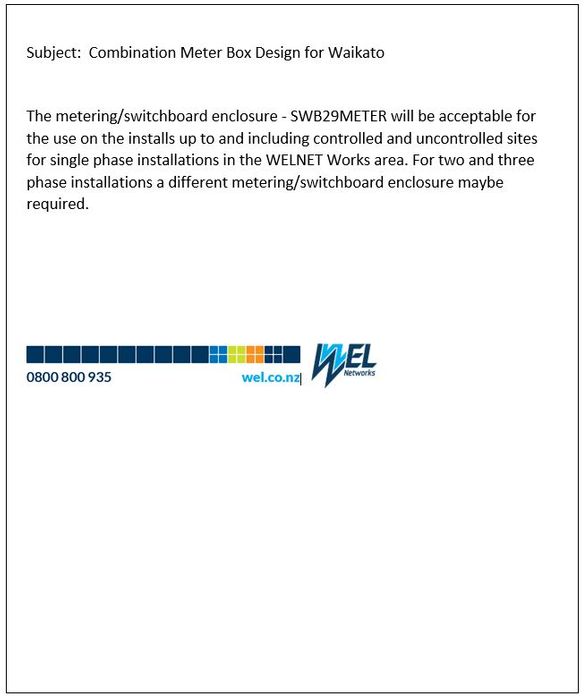

WEL Networks has confirmed below switchboard is APPROVED for the use on the installs up to and including controlled and uncontrolled sites for single phase installations in the WEL Networks area, and may be able to use in two and three phase installations.
