25mm Heat Shrinkable Flexible tube - Blue - 1.2m
Stock Code:
OHTW 25-BL
Description

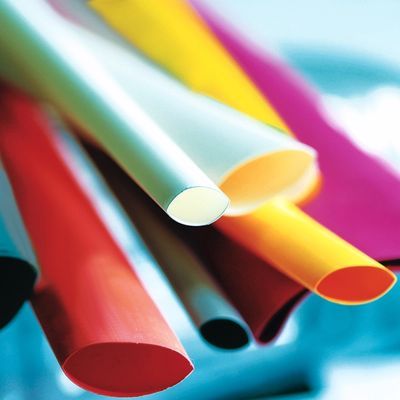

Heat shrink tube coming in different colours and various sizes with 1.2 meter in length.
Made from a flexible polyolefin tubing providing a high level of flame retardance, insulation and excellent flexibility.
These self sealing heat shrinks can be used for a variety of electric insulation , strain relief and for joining cables and connectors.
Also suitable for light duty harnessing , bundling and to colour code electric wiring.
These tubes shrink under a specific temperature with high resistance to abrasion providing protection for cable termination.
Length: 1.2m
Size: 25mm
Colour: Blue
Operating temperature range : -55C ~ 135C
Flammability : UL VW-1, -F- mark (except clear products)
Minimum shrink temperature : 90C
Shrink ratio : 50% or more in radial direction
Standards
UL 224 (File No. E84393 : VW-1, 600V, 125C, except clear products)
MIL-I-23053/5 : 600V, 135C, Class 1 and Class 3, Class 2 (clear products only)
Size: 25mm
Colour: Blue
Operating temperature range : -55C ~ 135C
Flammability : UL VW-1, -F- mark (except clear products)
Minimum shrink temperature : 90C
Shrink ratio : 50% or more in radial direction
Standards
UL 224 (File No. E84393 : VW-1, 600V, 125C, except clear products)
MIL-I-23053/5 : 600V, 135C, Class 1 and Class 3, Class 2 (clear products only)
