Shear Bolt Barrier Links 16-95mm 1kv
Stock Code:
ARCUS 209089
Description

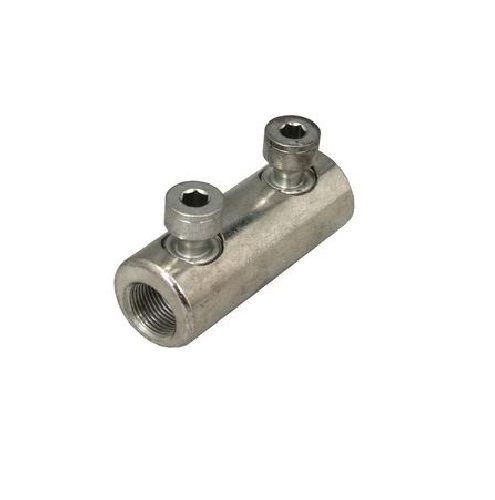

The Aluminum ShearBolt Terminal is ideally suited for making aluminum or
copper cable connections to flat bar or equipment pads. The terminal is manufactured from high conductivity aluminum designed for heavy-duty utility applications. The bore of the connector body has a unique grooved surface to enhance electrical contact and minimize resistance at the interface between the terminal and the conductor.
Cross Section: 16 - 95mm
Torque: 20 Nm
SW(i) (DIN 475): 5
Shear-head screw removable
Tin-Plated
With oil-stop
Torque: 20 Nm
SW(i) (DIN 475): 5
Shear-head screw removable
Tin-Plated
With oil-stop
