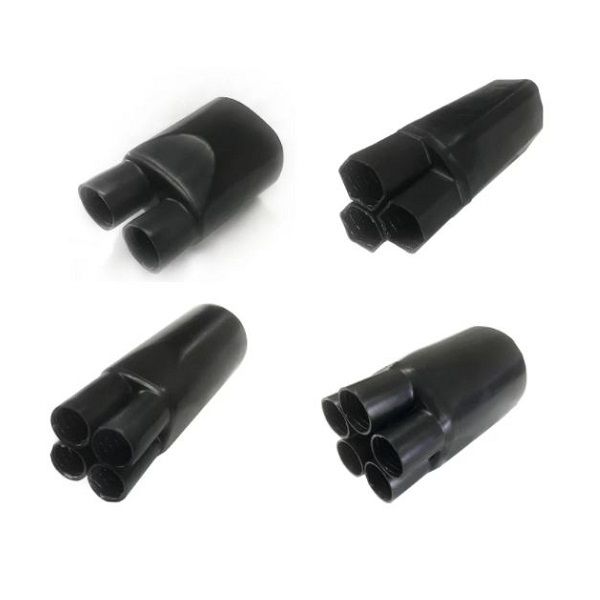

Cable Breakout Boot 4-35mm 4core
Stock Code:
OHBB 415
Description
Insulation and sealing over the crutch of multi-core cables. The hot melt adhesive provides a water tight environmental seal to the cable. The LV breakouts are used as an intergral part of cable terminations up to 1kV. Heat shrinkable low voltage breakouts whose dimension will shrink to a pre-determined size upon the application of heat above 125degree.
Finger: 4
Length: 105mm
Finger length: 25mm
Hot Melt: Poly-amid based hot melt adhesive
Up to 1KV
Body Shrinakble: 38mm+14mm
Finger Shrinkable: 15mm+3.2mm
Length: 105mm
Finger length: 25mm
Hot Melt: Poly-amid based hot melt adhesive
Up to 1KV
Body Shrinakble: 38mm+14mm
Finger Shrinkable: 15mm+3.2mm
