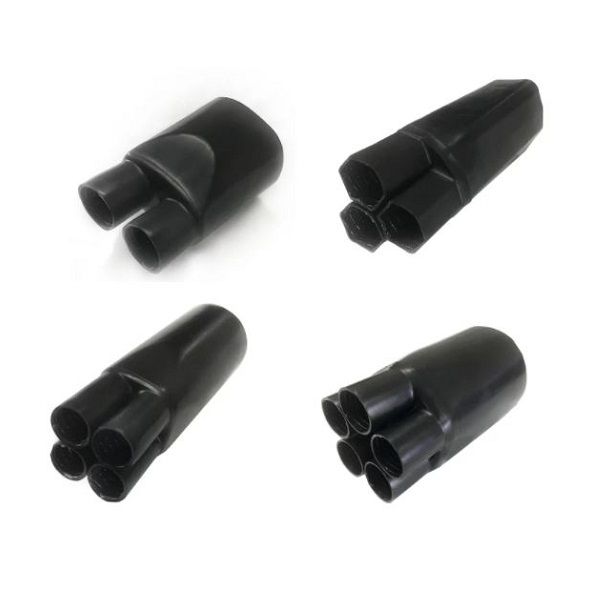

Cable Breakout Boot 70-150mm 4core
Stock Code:
OHBB 430
Description
Insulation and sealing over the crutch of multi-core cables. The hot melt adhesive provides a water tight environmental seal to the cable. The LV breakouts are used as an intergral part of cable terminations up to 1kV. Heat shrinkable low voltage breakouts whose dimension will shrink to a pre-determined size upon the application of heat above 125degree.
Finger: 4
Length: 190mm
Finger length: 45mm
Hot Melt: Poly-amid based hot melt adhesive
Up to 1KV
Body Shrinakble: 72mm+22mm
Finger Shrinkable: 25mm+8.5mm
Length: 190mm
Finger length: 45mm
Hot Melt: Poly-amid based hot melt adhesive
Up to 1KV
Body Shrinakble: 72mm+22mm
Finger Shrinkable: 25mm+8.5mm
