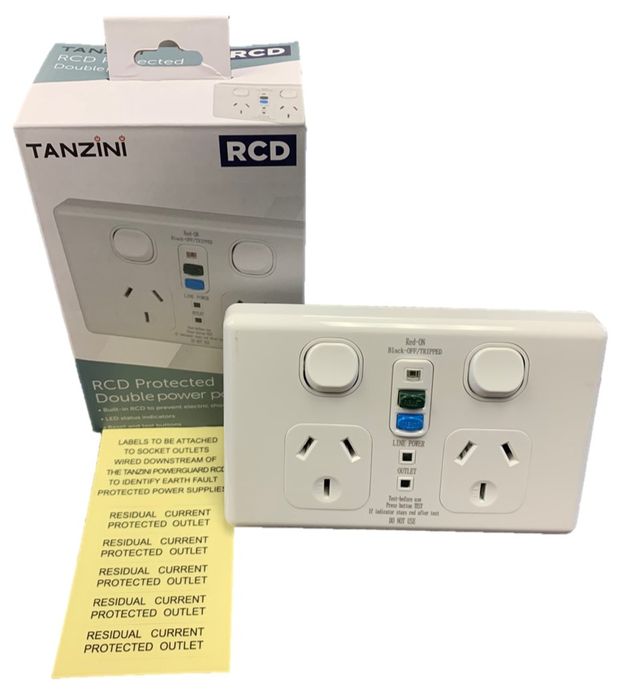

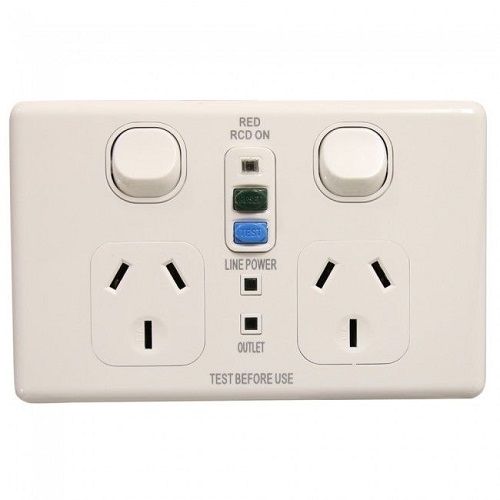

TANZINI RCD HORT DOUBLE SOCKET 10A 30mATYPE A
Stock Code:
TZRCD20
Description
Designed to be a direct replacement for your standard powerpoint fittings, combining two standard 230AC 10A mains (powerpoint)outlets with a built-in RCD to provide protection against electrical shock. In the event of a fault with the connected appliance or accident, such as a cut through the mains lead, the unit will provide complete isolation from mains. A test button, status indicator, and reset button allows you to check the RCD, which we recommend should be done each time before use.
Specifications:
CD Classified: Type A
Rated Voltage: 230-240VAC
Rated Current: 20A max (Total)
Frequency: 50Hz
Rated Tripping Current: 30mA Operating Speed: <40mS Max.
L/Nin-L/Nout: 2KV
Endurance: 2000 Cycles Minute
RCD Contact Break: Double Pole
Switch Contact Break: Single Pole
Standards: RCD Module-AS NZS 3190, Socket-AS NZS 3112 Minimum Back Box Depth: 35mm
Fixing Screws: M3.0 x 25mm
Cable Capacity: 4x2.5mm2,2x4mm2,1X6mm2
IP Rating: IP30
Weight: 144g
Dimensions: 120(W) x 76(H) x 50(D)mm
CD Classified: Type A
Rated Voltage: 230-240VAC
Rated Current: 20A max (Total)
Frequency: 50Hz
Rated Tripping Current: 30mA Operating Speed: <40mS Max.
L/Nin-L/Nout: 2KV
Endurance: 2000 Cycles Minute
RCD Contact Break: Double Pole
Switch Contact Break: Single Pole
Standards: RCD Module-AS NZS 3190, Socket-AS NZS 3112 Minimum Back Box Depth: 35mm
Fixing Screws: M3.0 x 25mm
Cable Capacity: 4x2.5mm2,2x4mm2,1X6mm2
IP Rating: IP30
Weight: 144g
Dimensions: 120(W) x 76(H) x 50(D)mm
