TANZINI COMBINATION METAL BOARD 17WAY128MM DEEP
Stock Code:
SWB17METER
Description
TESTED AND APPROVED IN NEW ZEALAND.
NEW DESIGN HIGH QUALITY TANZINI COMBINATION BOARD.
ADVANTAGE:

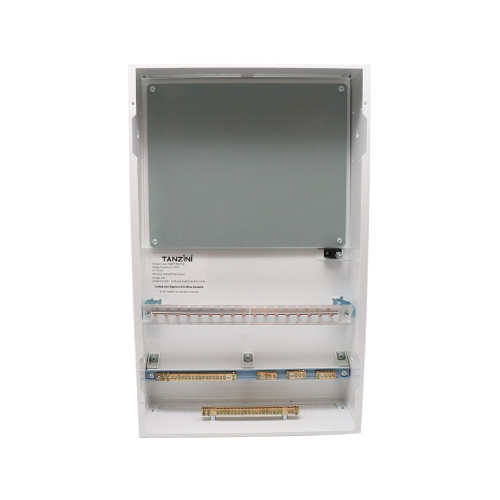

MAXIMUM CAN FIT 17 PCS OF MCBs
EXTRA DEEP SPACE ON METER INSTALLATION AREA.
EXTRA SPACE TO ACCESS BETWEEN NEUTRAL AND EARTH BAR
EASY ASCESS ON TOP AND BOTTOM DESIGN
POLES FILLERS, PROTECTIVE RUBBER AND PVC ROD TOOTH INCLUDED
SPECIFICATION:
IT CAN FIT MAXIMUM 17 PCS OF MCBs
DIMENSION:
BODY: 580MM X 360MM X 128MM
WITH FRAME AND DOOR: 603MM X 403MM X 144MM
One Row
Rating: InA = 125A
IP: IP2XC
Flush Mount
Comply with AS/NZS 61439.1:2016 and AS/NZS 61439.3:2016
IT CAN FIT MAXIMUM 17 PCS OF MCBs
DIMENSION:
BODY: 580MM X 360MM X 128MM
WITH FRAME AND DOOR: 603MM X 403MM X 144MM
One Row
Rating: InA = 125A
IP: IP2XC
Flush Mount
Comply with AS/NZS 61439.1:2016 and AS/NZS 61439.3:2016
