120MM 4 CORE ALUMINIUM CABLE
Stock Code:
120MM 4C AL
Description
This cable may be buried directly in the ground, or may be installed in ducts buried in the ground. XLPE insulation material has better mechanical, electrical, chemical and durability characteristics than PVC.
Used for primary power distribution by municipal and cooperative utilities and commercial / Industrial users. Where general appearance, economics, congestion, or maintenance conditions make overhead construction inadvisable, underground construction is specified. Such applications are competitive in urban and suburban residential installations, which constitute the bulk of the distribution systems.
Conforms to AS/NZS 4026

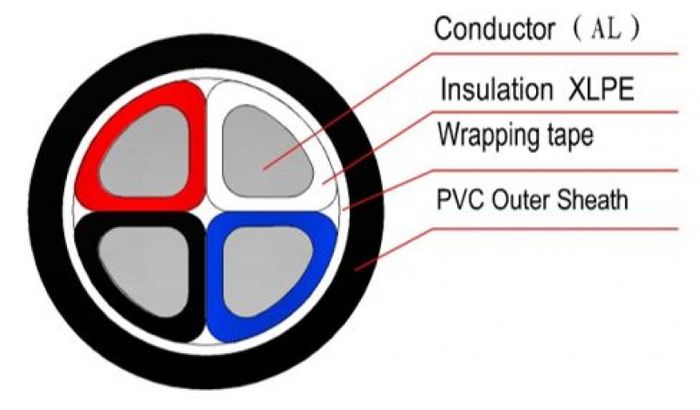

Core colours: Red, White, Blue, Black
Number of Core: 4
Conductor: Stranded 90o sector-shaped Al 1350 AS/NZS 2848.1
Conductor Size: 120mm
Insulation: XLPE X-90 AS/NZS 3808
Sheath: PVC 5V-90 Black AS/NZS 3808
Test voltage: 3.5kV/5min
Temperature range: -40 to 90C
Core colours: Red, White, Blue, Black
Number of Core: 4
Conductor: Stranded 90o sector-shaped Al 1350 AS/NZS 2848.1
Conductor Size: 120mm
Insulation: XLPE X-90 AS/NZS 3808
Sheath: PVC 5V-90 Black AS/NZS 3808
Test voltage: 3.5kV/5min
Temperature range: -40 to 90C
