10MM 2Core Garden Cable
Stock Code:
LFD232202

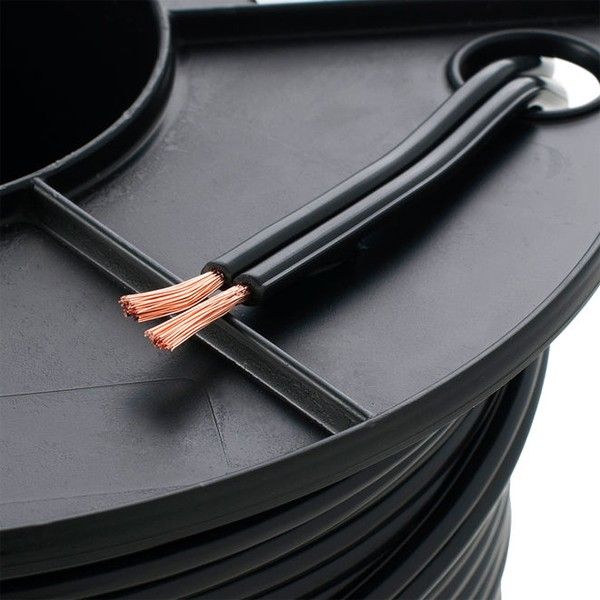

2 Core Parallel Webbed (Figure 8) 322/0.2 (10.0mmsq). P.A.C.W.
Flexible U.V resistant P.V.C insulated.
Extra Low Voltage cable.
Not for mains outlet connection.
Conductor: 322 strands of 0.2mm Plain Annealed Copper to AS/NZS 1125 drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 1.83 ohms / km.
Insulation: Black U.V Resistant P.V.C.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 6.0 x 12.5 mm.
Nominal Wall Thickness: 0.66 mm.
Polarity Identification: By permanent raised ribs on one leg.
Flexible U.V resistant P.V.C insulated.
Extra Low Voltage cable.
Not for mains outlet connection.
Conductor: 322 strands of 0.2mm Plain Annealed Copper to AS/NZS 1125 drawn from Class 110A copper to AS/NZS 1574.
Max. D.C. resistance at 20C: 1.83 ohms / km.
Insulation: Black U.V Resistant P.V.C.
Parallel Webbed (Figure 8 configuration).
Nominal Diameter: 6.0 x 12.5 mm.
Nominal Wall Thickness: 0.66 mm.
Polarity Identification: By permanent raised ribs on one leg.
