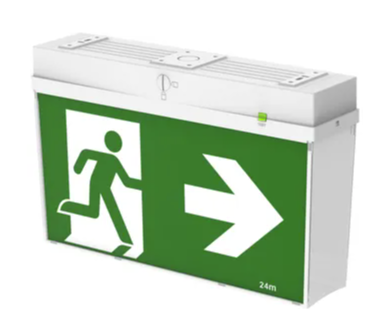

BARDIC 2.3W All-in-one LED Exit 24M AS/NZS2293 Emergency
Stock Code:
EGRLPG2
Description
An aesthetically pleasing all-in-one maintained exit, designed for low maintenance and low power consumption. The Lithium Iron Phosphate (LiFePO4) battery technology provides a sustainable energy source with excellent thermal stability, faster charge times, high energy density and provides constant power delivery.
-Lithium Iron Phosphate battery including integrated battery management system (BMS) to maximize battery life
-24m Viewing distance, Maintained mode of operation
-Quick & Easy Slide Connect Installation
-Complete with all variations of the "Running Man" decal pack
-Designed and manufactured in accordance to AS/NZS 2293
Technical Data:
Input Operating Voltage: 230V 50Hz
Output:
Light Source: 2.3W
Lifetime: 50,000 hour LEDs
Function: Maintained
Battery:
Type: LiFePO4
Protection: Overcharge and low voltage disconnect
Emergency Runtime: 2 hours*
Physical:
IP Classification: IP20
Weight: 1.0kg
Dimensions (LxWxH): 325 x 204 x 79 mm
Construction: Body: Polycarbonate / Diffuser: Polyethylene
Viewing Distance: 24m
Environment:
Temperature: 0 - 45 deg C
Relative Humidity: 0 - 95%
Conformance:
C0: D5.0
C90: D5.0
Standards: AS2293, CISPR15, AS60598
Warranty:
Duration: Fitting: 3 Years / Battery: 2 Year
*Guaranteed to meet runtime requirements of AS/NZ 2293 throughout warranty duration.
Accessory:
EGRLPG2-RM Rod Mount Kit
EGRLPG2-CS Chain Suspension Kit
EGRLPG2-WS Wall Side Mount Kit
