BARDIC 2.4W LED Recessed Emergency IP20 AS/NZS 2293
Stock Code:
SATLIG2
Description

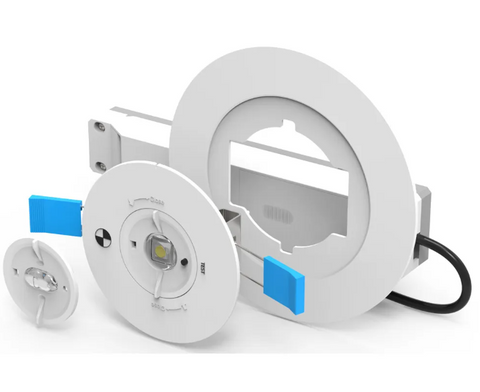

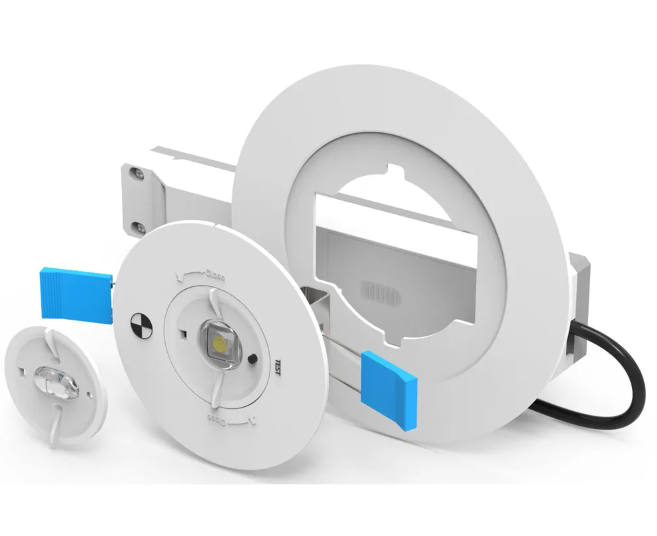

An LED recessed non-maintained emergency luminaire designed to provide discrete and outstanding emergency illumination with long life LED and low standby power consumption.
-LiFePO4 (Lithium Iron Phosphate) battery including integrated battery management system (BMS) to maximise battery life.
-Superior photometric classification (D63).
-Supplied with two optical lens options to suit Open Areas (330 Lm) and Corridors (276 Lm).
-Versatile 2-piece disc with both large (144mm) and small disc (95mm)
-Designed and manufactured in accordance to AS/NZS 2293
Technical Data
Input Operating Voltage: 230V 50Hz
Output
LED Array: Single LED
Light Source: 2.4W
Lifetime: 50,000 hour LEDs
Function: Non-Maintained
Lumen Output (Emergency Mode): 330lm (Open Area)
Battery
Type: LiFePO4
Protection: Overcharge and low voltage disconnect
Emergency Runtime: 3 hours*
Physical
IP Classification: IP20
Weight: 0.7kg
Dimensions - Lamp Disc (OxH): Outer disc: 145x28mm / Inner disc: 95x28mm
Construction: Disc: Flame Retardant PC
Control Box: Flame Retardant PC
Installation
Mounting: Recessed
Environment
Temperature: 0 - 40 degC
Relative Humidity: 0 - 95%
Conformance
C0: D63
C90: D63
Standards: AS2293, CISPR15, AS60598
Intelligence
Sentinel: No
WiNetRF: No
Warranty
Duration: Fitting: 3 Years / Battery: 2 Year
*Guaranteed to meet runtime requirements of AS/NZ 2293 throughout warranty duration.
