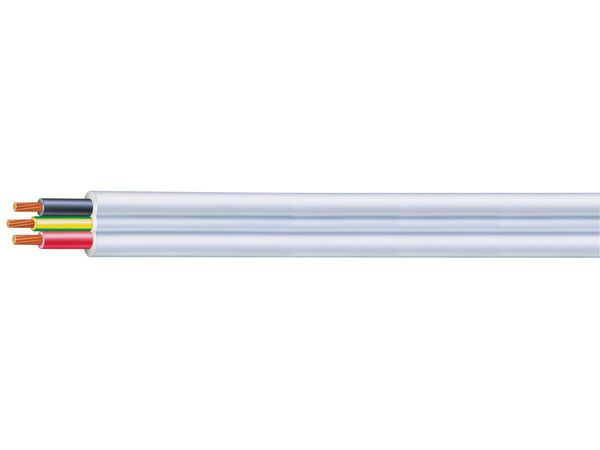

PRYSMIAN 1MM 2C+E TPS FLAT
Stock Code:
1MM2C+E PRYSM
Description
Two core plus earth flat cable with 450/750V V-90 insulation.
PVC sheathed complies with AS/NZS 5000.2 standards which was manufactured in accordance with PVC best practice guidelines.
Includes 90°C copper conductors.
It is suitable for fixed wiring installation for power circuits in domestic, commercial and industrial situations.
Conductor material: Copper
Outer sheath: PVC
Insulation: PVC
Cores x Area (mm2): 2 x 1.0 + 1.0 E
Rated Voltage Uo/U: 450/750 V
Max. conductor temperature in service: 75°C
Earth selection cross: 1.0 mm²
Nom Diameter: 4.0 x 8.6 mm
Subject to stock available.
