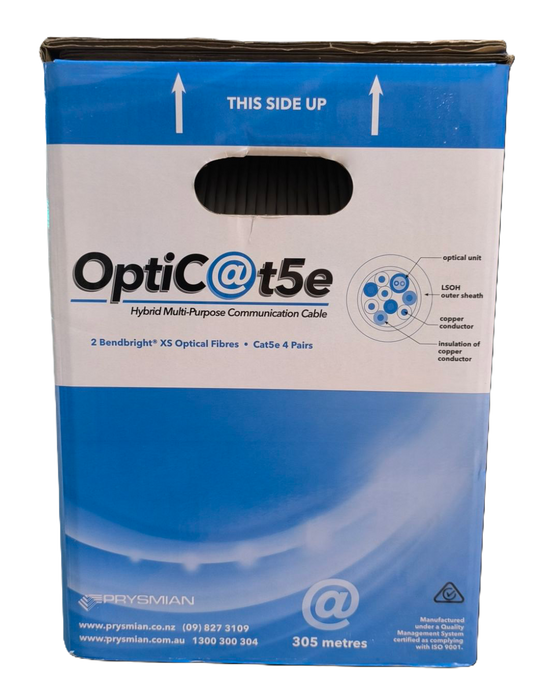

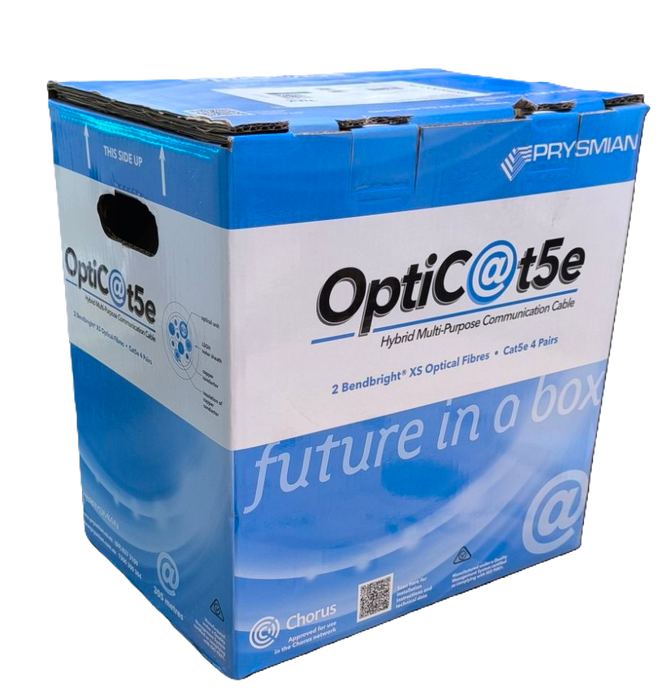

Pys Optic@T5E Hybrid Cat5E +2F BBSX FIBER CABLE White 305M
Stock Code:
60056169PRYSM
Description
The communication cable OptiC@t™5e is a combo of a four pair Cat 5E and two bend-insensitive fibres. Not only will it’s capability for super high-speed make the building attractive to future owners, the Low Smoke Zero Halogen sheath makes the building much safer, too. Plus, the cables insensitivity to bending makes it a lot easier and less expensive to install. Copper and optic fibre links the present to the future and gives you the better of two worlds.
OptiC@t5e complex Cable - 4x 2 x 0.5+2SM BBXS
Cat5E Part:
Copper wire Diameter mm 0.50 mm
Insulation thickness mm Nominal 0.21 mm
Insulation Diameter mm Ø 0.92 ± 0.05 mm
Optical Unit:
Buffer diameter mm Ø 0.9 ± 0.05 mm
Sheath diameter mm Ø 2.5± 0.1 mm
OptiC@t™5e can be installed in:
New housing estates
Major home renovations
Commercial fit outs of old buildings
New commercial building installs
New or old refits of residential units
