Heatshrinkable Wrap-Around Repair Sleeve
Stock Code:
CRSM-84-20-300
Description

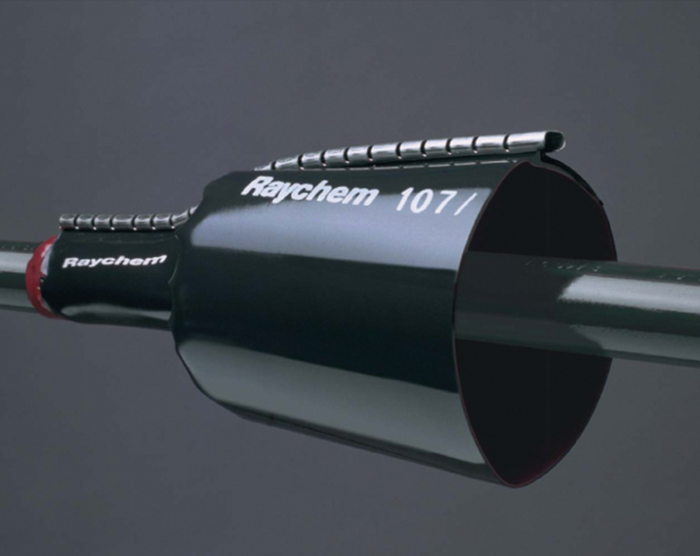

CRSM wrap-arounds are a fast and permanent cable repair and sealing system. The repair sleeve is quickly fitted in place by means of its rail and channel closure. This labour-saving installation fits and seals all in one step. CRSM wrap-arounds are abrasion and corrosion resistant, and each size covers a range of cable sizes.
Raychem¡¯s distinctive closure system, which incorporates a stainless steel channel slid over rails on the sleeve, keeps the wrap-around in place during installation but can be easily removed when the adhesive has set. The closure system has been improved and no longer requires a specialised tool to install it.
Application Range Diameter (mm): 24-50
Inside Diameter D (mm): Min A: 86 / Max B: 21
Length (mm): 300
Operating temperature range -40degree to 120degree
Shrink ratio 3:1
Sealant lined
Halogen free
Applications:
Repair cable sheath damage without cutting cable
Underground jointing (and in tight areas)
Sealing cable glands
Abrasion corrosion and decay resistant
IP68
100% waterproof
Inner adhesive wall
UV resistant
Voltage class 1kV
Inside Diameter D (mm): Min A: 86 / Max B: 21
Length (mm): 300
Operating temperature range -40degree to 120degree
Shrink ratio 3:1
Sealant lined
Halogen free
Applications:
Repair cable sheath damage without cutting cable
Underground jointing (and in tight areas)
Sealing cable glands
Abrasion corrosion and decay resistant
IP68
100% waterproof
Inner adhesive wall
UV resistant
Voltage class 1kV
