LENKENG - Cat6 Expander
Stock Code:
LKV372A
Description

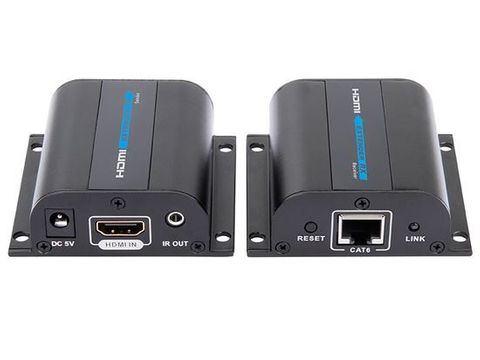

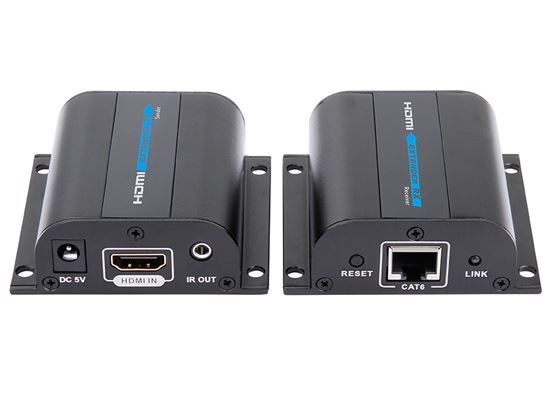

LKV372A HDMI extender is an HDMI network extender that transmits HDMI 1080p AV signal for up to 60m with a Cat6 or higher level cable. It overcomes HDMI signal transmission distance limit to make projects more stable and cost-effective.
Power Supply: 5V, 1A DC
Resolution Supported:
480i@60Hz, 480p@60Hz,
576i@50Hz, 576p@60Hz,
720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Network Cable: Low resistance and consumption oxygen-free copper core (CAT6, CAT6A)
Transmission Length: Transmit length more than 60M via CAT6 or higher level cable
IR Remote Control Supports: 20-60Khz
Power Consumption: TX:<2W; RX:<2W
Product Dimension (LxWxH): 71.6 x 66.6 x 24.8mm
Resolution Supported:
480i@60Hz, 480p@60Hz,
576i@50Hz, 576p@60Hz,
720p@50/60Hz, 1080i@50/60Hz,
1080p@50/60Hz
Network Cable: Low resistance and consumption oxygen-free copper core (CAT6, CAT6A)
Transmission Length: Transmit length more than 60M via CAT6 or higher level cable
IR Remote Control Supports: 20-60Khz
Power Consumption: TX:<2W; RX:<2W
Product Dimension (LxWxH): 71.6 x 66.6 x 24.8mm
