70MM 1 CORE ALUMINIUM CABLE
Stock Code:
70MM 1C AL
Description

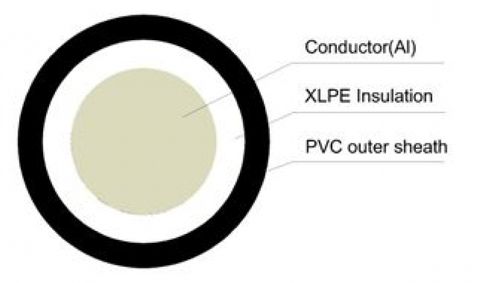

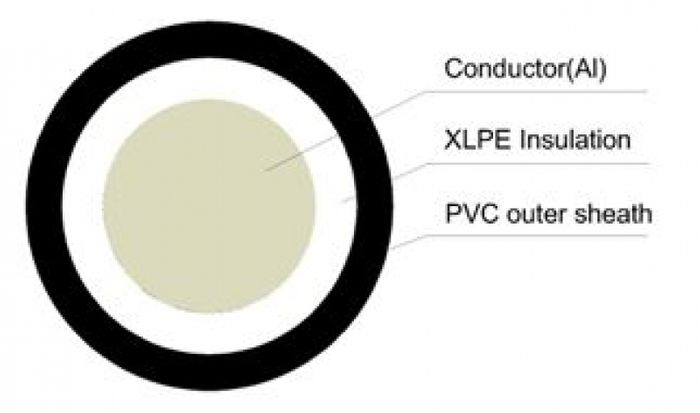

This cable may be buried directly in the ground, or may be installed in ducts buried in the ground. Used for Indoors, cable ducts, outdoors and buried in the ground, for power stations, industry and switchgear as well as for urban supply networks, if mechanical damage is unlikely. XLPE insulation material has better mechanical, electrical, chemical and durability characteristics than PVC.
Conformance: AS/NZS 5000.1
Core colour: Natural
Number of Core: 1
Conductor: Al 1350 AS/NZS 2848.1
Conductor Size: 70mm
Insulation: XLPE X-90 AS/NZS 3808
Sheath: PVC 5V-90 Black AS/NZS 3808
Test voltage: 3.5kV/5min
Temperature range: -40 to 90C
Core colour: Natural
Number of Core: 1
Conductor: Al 1350 AS/NZS 2848.1
Conductor Size: 70mm
Insulation: XLPE X-90 AS/NZS 3808
Sheath: PVC 5V-90 Black AS/NZS 3808
Test voltage: 3.5kV/5min
Temperature range: -40 to 90C
