SMOKE ALARM HARDWIRE COMPATIBLE WITH ESL
Stock Code:
HM-MINI-12V
Description

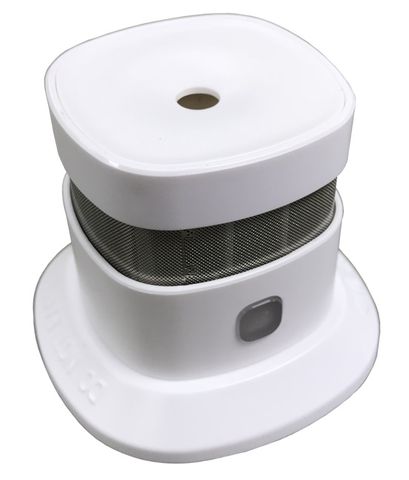

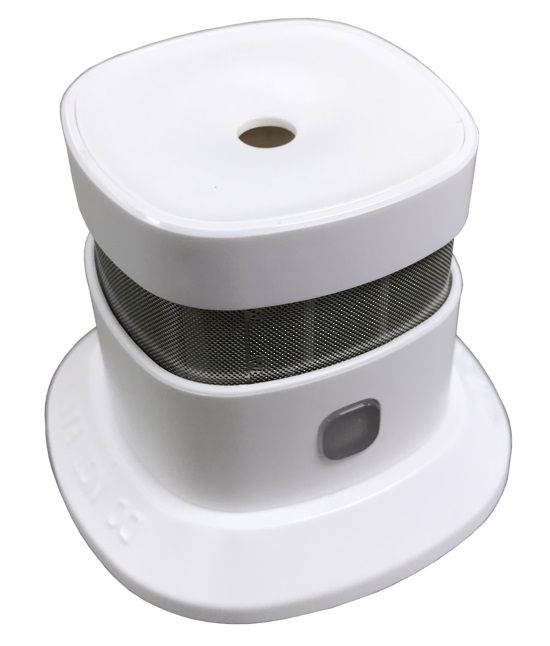

Wired Mini Smoke Detector 9-16VDC N/O & N/C Contacts
Compatible with ESL SYSTEM.
Specifications:
Detector Type: Photoelectric Chamber
Power Source: 9-16Volts DC
Standby Current: 5mA
Alarm Current: 25mA
Buzzer Output: 85db @ 3 meters
Output Relay: N/O and N/C Contacts 50mA max. (2K2 EOL built-in)
Dimensions: 51mm x 45mm dia.(smoke) 64mm dia.(base)
Detector Type: Photoelectric Chamber
Power Source: 9-16Volts DC
Standby Current: 5mA
Alarm Current: 25mA
Buzzer Output: 85db @ 3 meters
Output Relay: N/O and N/C Contacts 50mA max. (2K2 EOL built-in)
Dimensions: 51mm x 45mm dia.(smoke) 64mm dia.(base)
